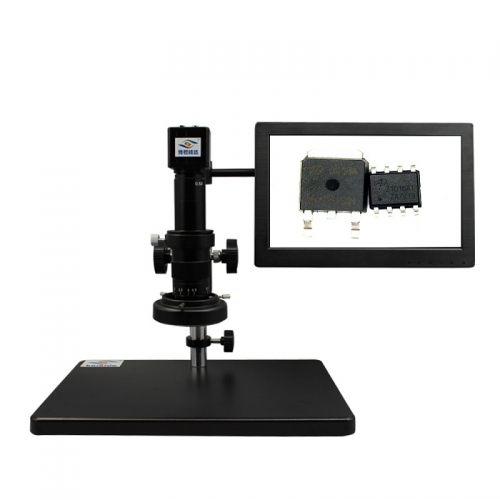

V200 serial Digital Video Microscope
▲ Standard Magnification: 14 -180X
▲ Resolution/Pixels: 2MP
▲ Camera port: VGA
▲ Illumination: Ring LED light
▲ Cetificate: CE, Rohs
Product Detail
※Features:

 V200 serial microscope is economic video microscope with VGA camera
▲ It can be connected to a display screen directly.
▲ It is compeytent for detecting PCB,small metal parts, plastic, coins,etc.
▲ For more application information, please contact us or view SOLUTION.


Specifications:

Model V200-A01
Standard Magnification 14-180X
Function Living image, cross line.
Lens Main len: 0.7-4.5X.
Optional auxiliary lens: 0.5X, 2X.
Resolution/Pixels 2 mega pixels
Field range 2-35mm
Focusing Moving distance 65mm
Camera VGA camera.
Sony 1/3 inch CMOS color sensor.
Frame rate: 45fps.
Camera settings by bottons for white balance,  exposure time, contrast, RGB, etc..
Stage 380*260mm.
Illumination Hight light LED ring light, brightness adjustable.
Optional part ▲Flexiable LED ring light
▲Auxiliary lens
▲Main lens
▲Boom stand
▲10-22 inch monitor.
Power supply AC100-240V, 50/60Hz.
