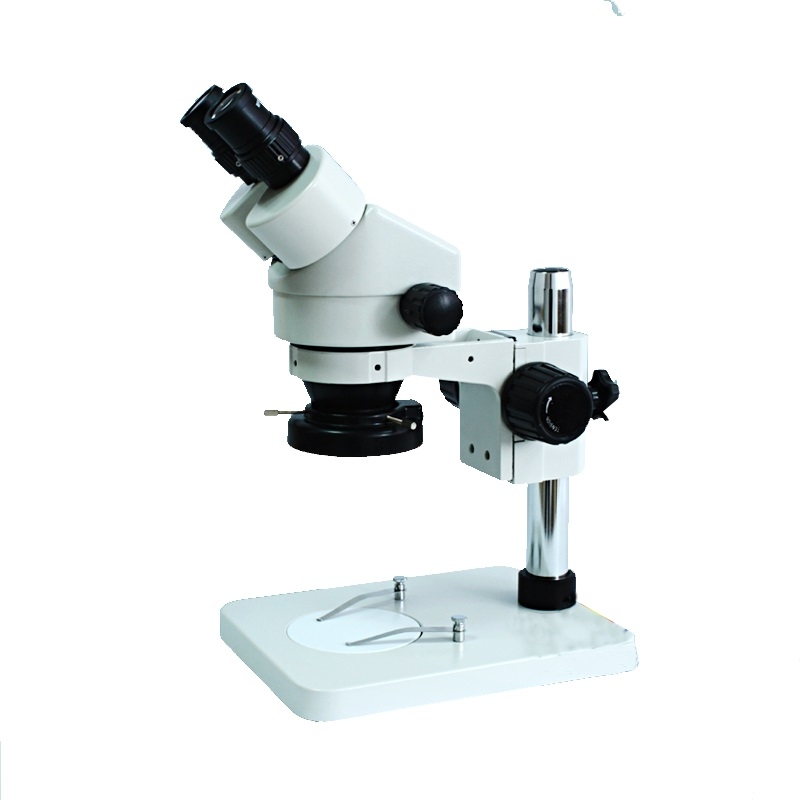

BD-45B1 Binocular Stereo Microscope
▲ View tube: Binocular
▲ Eyepiece: WF10× (Φ20mm)
▲ Objective: 0.7X-4.5X
▲ Magnification: 7X-45X
▲ Working distance: 100mm
▲ Depth of field: 15mm
▲ Illumination: Top LED
▲ Cetificate: CE, Rohs
Product Detail
※Features:
▲ The magnification of BD-45B1 stereo microscope can be adjusted continously.
▲ It has a dual boom arm, see BD-W245T1 stereo microscope.
▲ It has a dual boom arm, see BD-W245T1 stereo microscope.
▲ It is fit for medical and clinic, agroforestrial geology, pricise casting, especially for LED checking, PCB checking, clad layer checking and chip detecting.
▲ For more application information, please view SOLUTION for more introduction of application of tereomicroscope.
| Model | BD-45B1 |
| View tube | Binocular, 45° inclined. |
| Magnification | Standard: 7X-45X Can be extended to 3.5X-180X |
| Zoom ratio | 1:6.4 |
| Eyepiece | WF10X(Φ20mm) Optional: 15X, 20X |
| Objective | 0.7X-4.5X |
| Optional Auxiliary lens | Optional(Not standard): 0.5X, 2X |
| Working distance | 100mm |
| Depth of field | 15mm |
| Illumination | Top LED ring light |
| Stage base | Stage size: 200*255mm. Φ95mm glass working board or black and white working board |
